L7805ABV Standard Regulator Integrated Circuit Components Pos 5V 1.5A 3 Pin TO-220AB Tube

L7805ABV Standard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220AB Tube

Maximum ratings :

Description :

The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making ituseful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal currentlimiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Features :

• Output current up to 1.5 A.
• Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V.
• Thermal overload protection.
• Short circuit protection.
• Output transition SOA protection.
• 2 % output voltage tolerance (A version).
• Guaranteed in extended temperature range (A version).

Basic Information :

Part No: L7805ABV

Description: Standard Regulator Pos 5V 1.5A 3-Pin(3+Tab) TO-220AB Tube

for product datasheet, CONTACT US directly.

computer ic chip

computer integrated chip

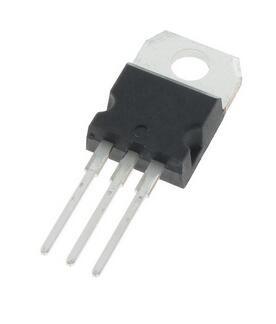

L7805ABV Standard Regulator Integrated Circuit Components Pos 5V 1.5A 3 Pin TO-220AB Tube Images
