CD4081BE AND Gate 4 Element 2 INP CMOS 14 Pin PDIP Tube

Name: CD4081BE AND Gate 4 Element 2 INP CMOS 14 Pin PDIP Tube
Brand: Texas Instruments
Price: 1 USD

Brand Name : Texas Instruments

Model Number : CD4081BE

Certification : Original Part

Place of Origin : Shenzhen, China

MOQ : 1PCS

Price : to be Negotiated

Payment Terms : T/T, Western Union, Paypal, Wechat Pay

Supply Ability : 1 Million pieces per Month

Delivery Time : Immediate

Packaging Details : 14DIP

Packaging : 14DIP

Product Description : Logic Circuit, Quad 2-Input AND, CMOS, 14 Pin, Plastic, DIP

Product Type : IC GATE AND 4CH 2-INP 14 DIP

Operating Temp Range : -55C to 125C

Contact Now

CD4081BE AND Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube

Technical Specifications :

Technology: CMOS

Logical Function: AND

Mounting: Through Hole

Operating Temp Range: -55C to 125C

Package Type: PDIP

Packaging: Rail/Tube

Pin Count: 14

Quiescent Current: 5(uA)

Propagation Delay Time: 90(ns)

Number of Elements: 4

High Level Output Current: -4.2(mA)

Operating Temperature Classification: Military

Number of Inputs: 2-IN

Number of Outputs: 1

Low Level Output Current: 4.2(mA)

Logic Family: 4000

Rad Hardened: No

Operating Supply Voltage (Typ): 3.3/5/9/12/15(V)

Operating Supply Voltage (Min): 3(V)

Operating Supply Voltage (Max): 18(V)

Number of Output Enables per Element: 0

Number of Selection Inputs per Element: 0

Output Type: Push-Pull

for product datasheet, CONTACT US directly.

Product Tags:

2 INP AND IC Gate

CD4081BE

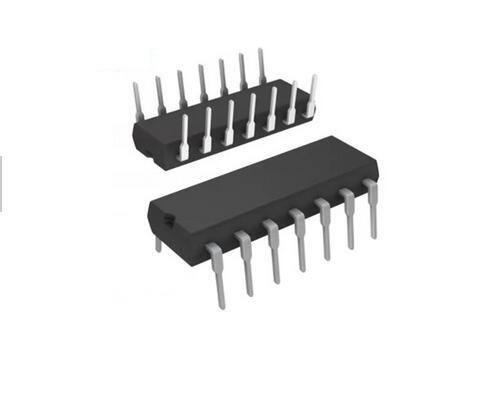

CD4081BE AND Gate 4 Element 2 INP CMOS 14 Pin PDIP Tube Images
