Electronic Components Trans GP BJT NPN 45V 0.1A 300mW 3-Pin SOT-23 T/R BC847BLT3 Integrated Circuits

Brand Name : ON Semiconductor

Model Number : BC847BLT3

Certification : Original Part

Place of Origin : Shenzhen, China

MOQ : 1PCS

Price : to be Negotiated

Payment Terms : T/T, Western Union, Paypal, Wechat Pay

Supply Ability : 1 Million pieces per Month

Delivery Time : Immediate

Packaging Details : SOT-23

Packaging : SOT-23

Product Description : Small Signal Bipolar Transistors

Product Type : TRANS NPN 45V 0.1A SOT-23

Operating Temp Range : -40C to 125C

Contact Now

Electronic Components Trans GP BJT NPN 45V 0.1A 300mW 3-Pin SOT-23 T/R BC847BLT3 Integrated Circuits


Technical Specifications :

Package Height 0.94
Package Width 1.3
Package Length 2.9
PCB changed 3
Mounting Surface Mount
Lead Shape Gull-wing
Type NPN
Product Category Bipolar Small Signal
Material Si
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 50
Maximum Collector-Emitter Voltage (V) 45
Maximum Emitter Base Voltage (V) 6
Operating Junction Temperature (°C) -55 to 150
Maximum Base Emitter Saturation Voltage (V) 0.7(Typ)@0.5mA@10mA|0.9(Typ)@5mA@100mA
Maximum Collector-Emitter Saturation Voltage (V) 0.25@0.5mA@10mA|0.6@5mA@100mA
Maximum DC Collector Current (A) 0.1
Maximum Collector Cut-Off Current (nA) 15
Minimum DC Current Gain 200@2mA@5V
Maximum Power Dissipation (mW) 300
Maximum Transition Frequency (MHz) 100(Min)
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Automotive No
Pin Count 3
Supplier Package SOT-23
Standard Package Name SOT
Military No

Features :

  • Moisture Sensitivity Level: 1.
  • ESD Rating;

− Human Body Model: >4000 VESD Rating

− Machine Model: >400 V

  • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant.

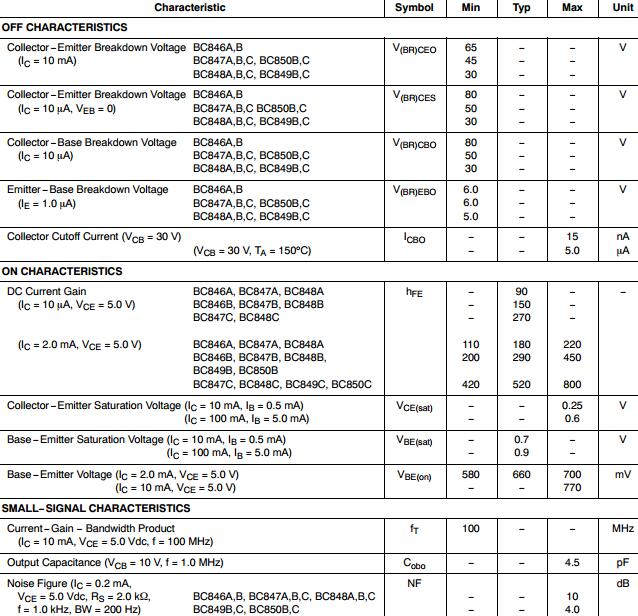

Electrical Characteristics :

Electronic Components Trans GP BJT NPN 45V 0.1A 300mW 3-Pin SOT-23 T/R BC847BLT3 Integrated Circuits

for product datasheet, CONTACT US directly.
